In the world of temperature sensing, RTD sensors (Resistance Temperature Detectors) are among the most reliable and accurate components available. At Focusens, we specialize in providing RTD sensors that offer high precision, stability, and long-term reliability for a wide variety of industries. Whether used in industrial automation, automotive systems, or medical devices, RTD sensors are essential for accurate temperature measurement. Let’s take a closer look at how RTD sensors work, their types, applications, and benefits.

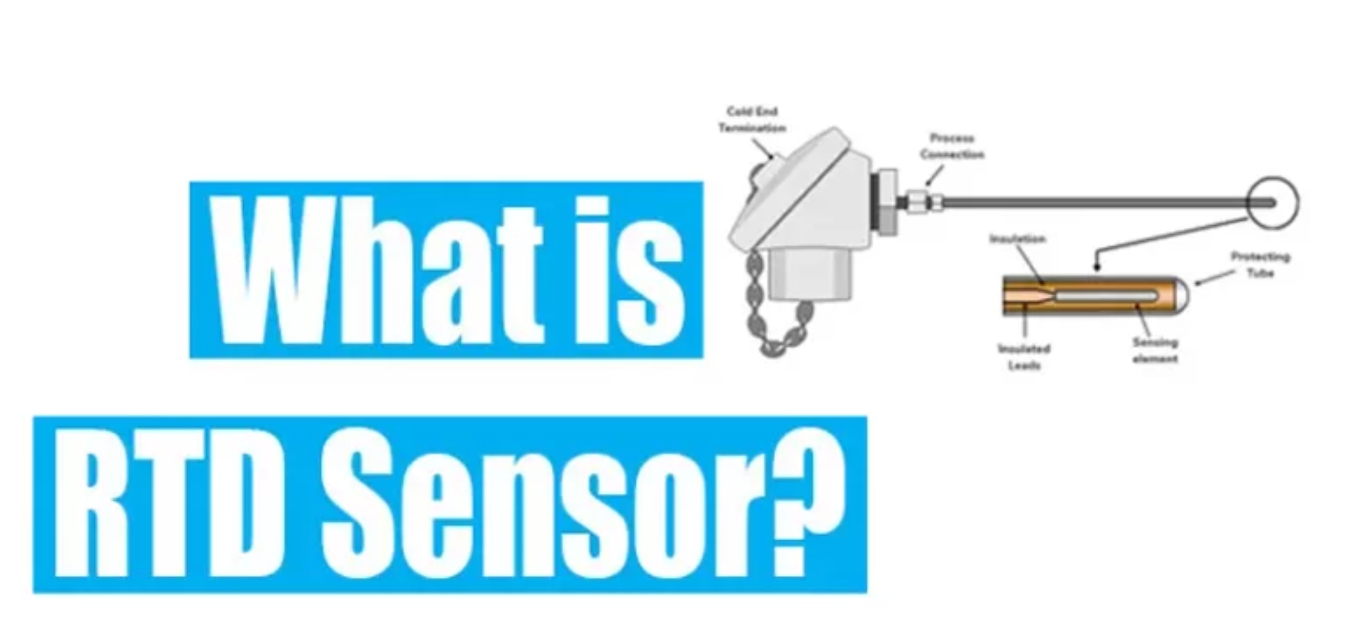

What is an RTD Sensor?

An RTD sensor is a type of temperature sensor that measures temperature based on the change in resistance of a material, typically platinum, as temperature changes. The core working principle of an RTD sensor is simple: as temperature increases, the resistance of the material increases in a predictable manner. This relationship between resistance and temperature makes RTD sensors highly accurate and suitable for precise temperature measurements.

RTD sensors are widely used in applications requiring high accuracy, stability, and repeatability. The most common type of RTD sensor is the PT100, which has a resistance of 100 ohms at 0°C.

How Do RTD Sensors Work?

RTD sensors are typically made from a pure metal like platinum because of its stable and linear relationship between resistance and temperature. The sensor consists of a thin wire or film of platinum, and its resistance changes as the temperature around it fluctuates. This change in resistance is then measured, and the corresponding temperature is calculated based on pre-defined calibration data.

To measure temperature, an electrical current is passed through the RTD sensor element. As the current flows, the resistance of the platinum wire changes in response to the temperature. This change in resistance can be measured and converted into a precise temperature reading.

Types of RTD Sensors

There are several types of RTD sensors, with different designs and characteristics. The most common types include:

1. PT100:

   • PT100 sensors are the most widely used RTD sensors, with a resistance of 100 ohms at 0°C. They offer high accuracy and stability, making them ideal for a wide range of applications.
   • PT1000 sensors are similar but have a resistance of 1000 ohms at 0°C. These sensors are used in applications where higher resistance values are needed.

2. Thin-Film RTDs:

   • These RTD sensors are constructed by depositing a thin layer of platinum onto a ceramic or glass substrate. Thin-film RTD sensors are cost-effective and provide good performance for general-purpose applications.

3. Wire-Wound RTDs:

   • These RTD sensors are made by winding a fine platinum wire around a ceramic core. They offer excellent accuracy and stability, making them suitable for high-precision measurements in industrial settings.

4. Surface Mount RTDs:

   • These RTD sensors are designed to be mounted directly onto surfaces to measure the temperature of equipment, machinery, or other components. They are widely used in industrial applications where space is limited.

Applications of RTD Sensors

RTD sensors are used in a wide variety of industries due to their accuracy and long-term stability. Some common applications include:

1. Industrial Automation:

   • RTD sensors are widely used in industrial settings for monitoring and controlling temperatures in machinery, equipment, and processes. They are essential for ensuring optimal performance and preventing overheating in manufacturing systems, production lines, and machinery control.

2. HVAC Systems:

   • Heating, ventilation, and air conditioning (HVAC) systems rely on RTD sensors to monitor and control the temperature of indoor environments. These RTD sensors help maintain the desired temperature range, ensuring comfort and energy efficiency in homes, offices, and commercial buildings.

3. Automotive Applications:

   • RTD sensors are used in vehicles to monitor the temperature of engines, batteries, and exhaust systems. By keeping track of the temperature in key components, RTD sensors help ensure the proper functioning of vehicles and prevent overheating.

4. Medical Devices:

   • RTD sensors are commonly used in medical equipment like thermometers, incubators, and patient monitoring systems. In the healthcare industry, precise temperature measurement is critical for patient safety and effective medical treatments.

5. Energy and Power Generation:

   • RTD sensors are used in power plants and energy production systems to measure temperatures in turbines, generators, and reactors. Accurate temperature control ensures safe and efficient operation in energy generation processes.

6. Food and Beverage Industry:

   • RTD sensors play an important role in the food industry by monitoring temperatures during processing, cooking, and storage. Ensuring that temperatures are kept within safe ranges is vital for food safety and quality.

Advantages of RTD Sensors

RTD sensors offer several key advantages, which make them an excellent choice for accurate temperature measurement:

1. High Accuracy:

   • RTD sensors provide accurate temperature readings with minimal deviation. Their linear resistance-to-temperature relationship ensures that measurements are precise and reliable.

2. Long-Term Stability:

   • RTD sensors are known for their long-term stability, meaning they maintain their accuracy over time, even under changing conditions. This makes them ideal for applications that require consistent, reliable temperature monitoring.

3. Wide Temperature Range:

   • RTD sensors can operate in a wide temperature range, typically from -200°C to +850°C, making them suitable for a variety of environments and industries.

4. Durability:

   • RTD sensors are highly durable and resistant to wear and tear. Their robust design ensures that they continue to function effectively even in harsh environments, such as industrial and automotive settings.

5. Repeatability:

   • RTD sensors offer excellent repeatability, meaning that they can consistently provide the same temperature readings under similar conditions. This makes them ideal for applications that require high reliability.

Why Choose Focusens for RTD Sensors?

At Focusens, we specialize in high-quality RTD sensors that meet the needs of various industries. Our RTD sensors are designed for accuracy, stability, and long-term reliability, making them the perfect choice for applications requiring precise temperature monitoring. We offer a wide range of RTD sensors to suit different temperature ranges, resistance values, and mounting styles.

Whether you need an RTD sensor for industrial automation, medical equipment, or HVAC systems, Focusens has the right solution for you. Our team is dedicated to providing high-performance sensors that exceed your expectations.

Conclusion

RTD sensors are essential components for accurate and reliable temperature measurement across many industries. With their high accuracy, stability, and wide temperature range, RTD sensors are the preferred choice for applications that require precise and long-lasting temperature control. At Focusens, we offer top-quality RTD sensors designed to meet your specific needs, ensuring reliable performance in even the most demanding environments.
